Műszaki adatok
Méretek
S, M, L, XL
Szín
Golden Haze
Váz

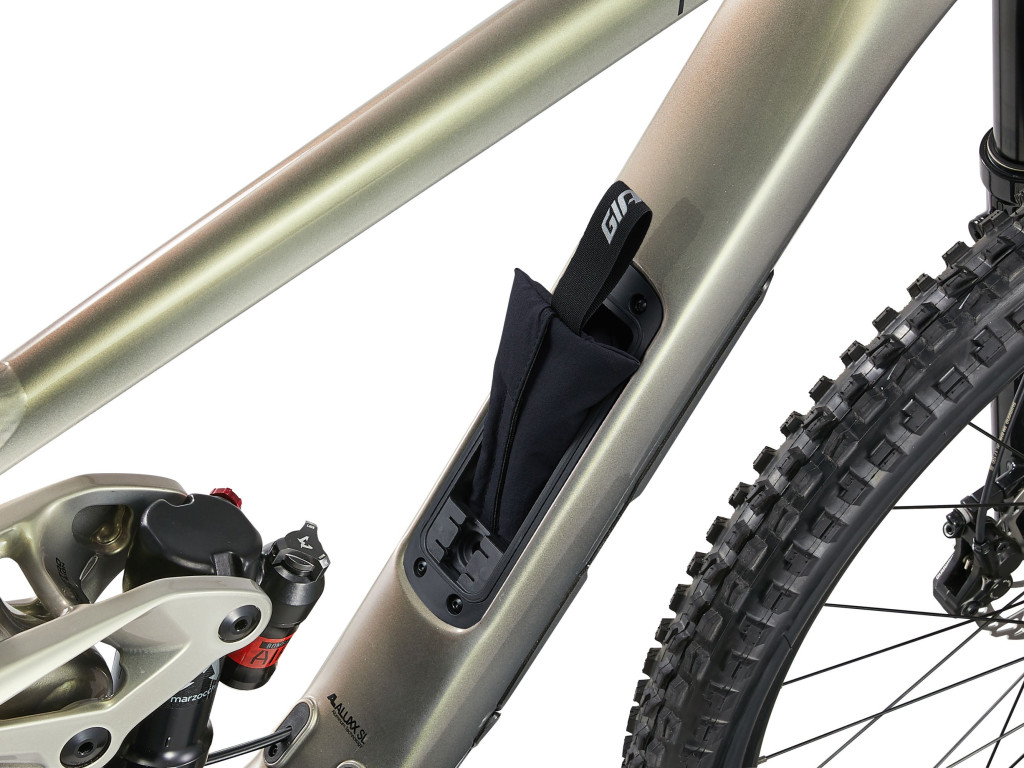

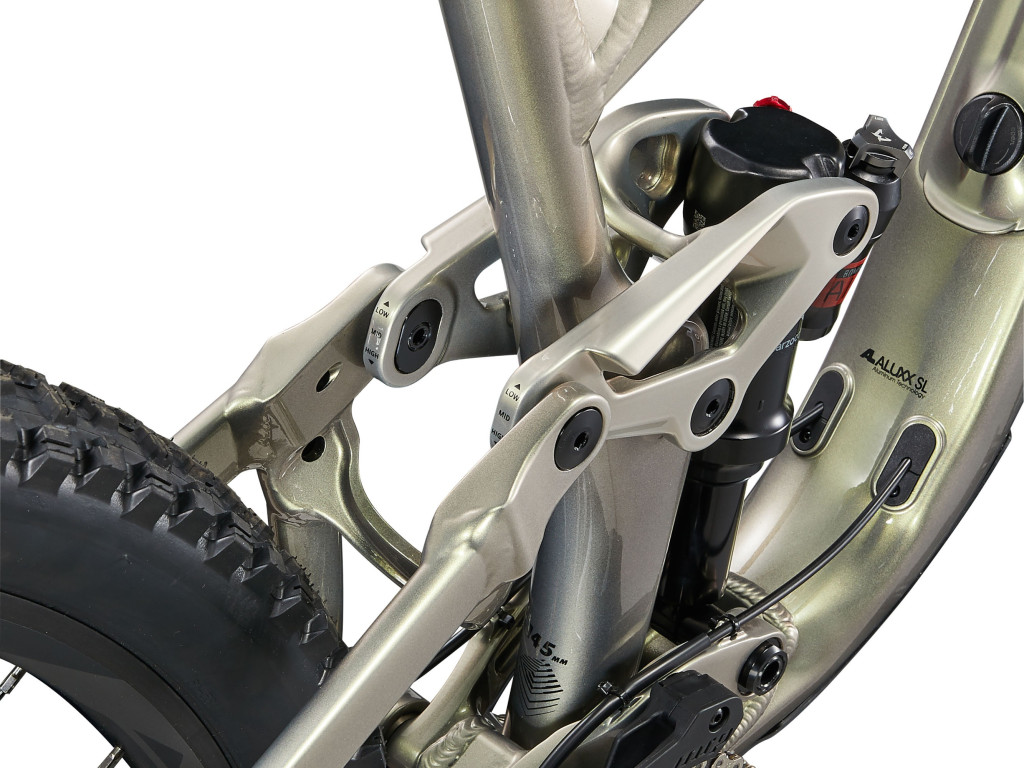

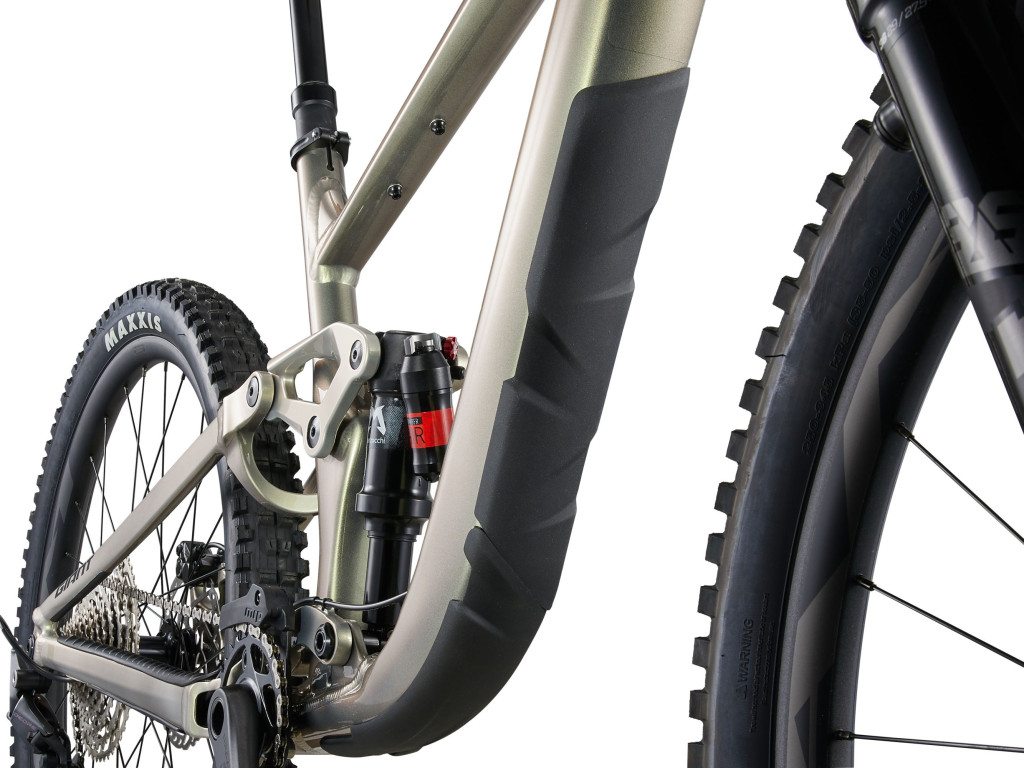

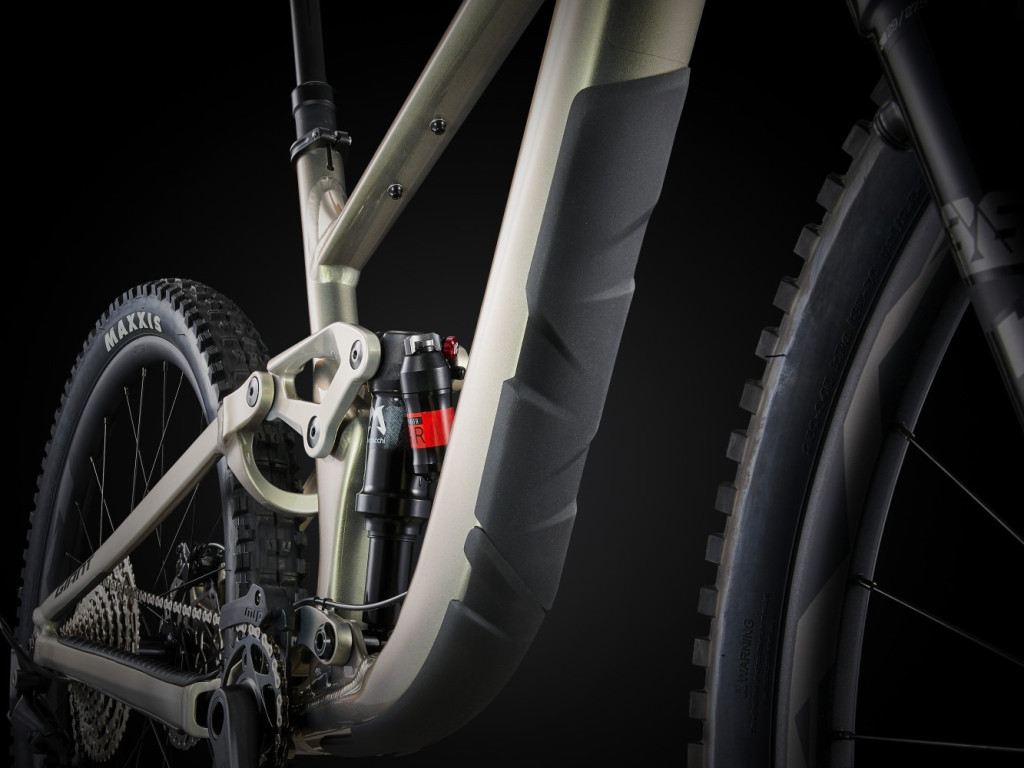

ALUXX SL-Grade Aluminum front and rear triangles, 145mm Maestro suspension, 12x148mm thru-axle, 27.5-inch rear wheel compatible, flip chip - Maestro 3, flip chip - headset, integrated down tube storage and under-top tube storage mounts
Villa
Fox 36 Float Rhythm, 160mm, GRIP damper, 15x110 Kabolt X, 44mm offset
Rugóstag

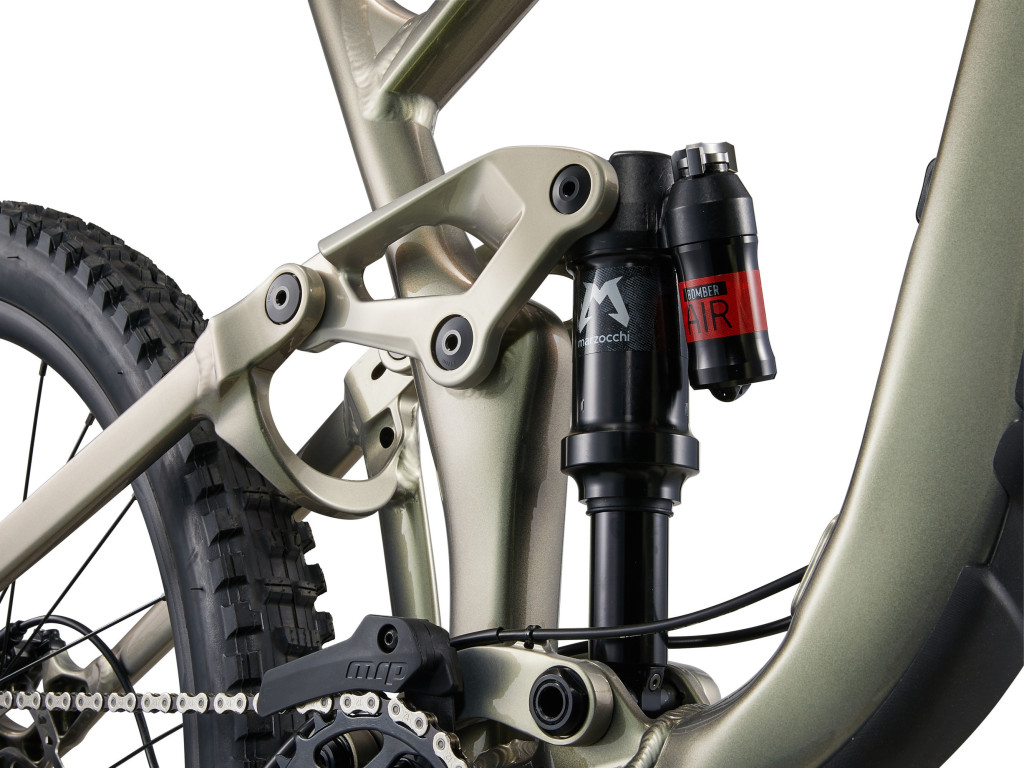

Marzocchi Bomber Air, two-position compression sweep, 185/55, custom tuned for Giant
Kormány
Giant Contact TR35, alloy, 780x35mm, 20mm rise
Kormányszár
Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
Nyeregcső
Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
Nyereg
Giant Romero SL
Pedálok
N/A
Váltókarok
Shimano Deore, 1x12
Első váltó
N/A
Hátsó váltó
Shimano Deore, Shadow +
Fékek
Shimano BR-MT420, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm
Fékkarok
Shimano Deore BL-MT401
Fogaskoszorú
Shimano Deore M6100, 10x51
Lánc
KMC X-12
Hajtómű

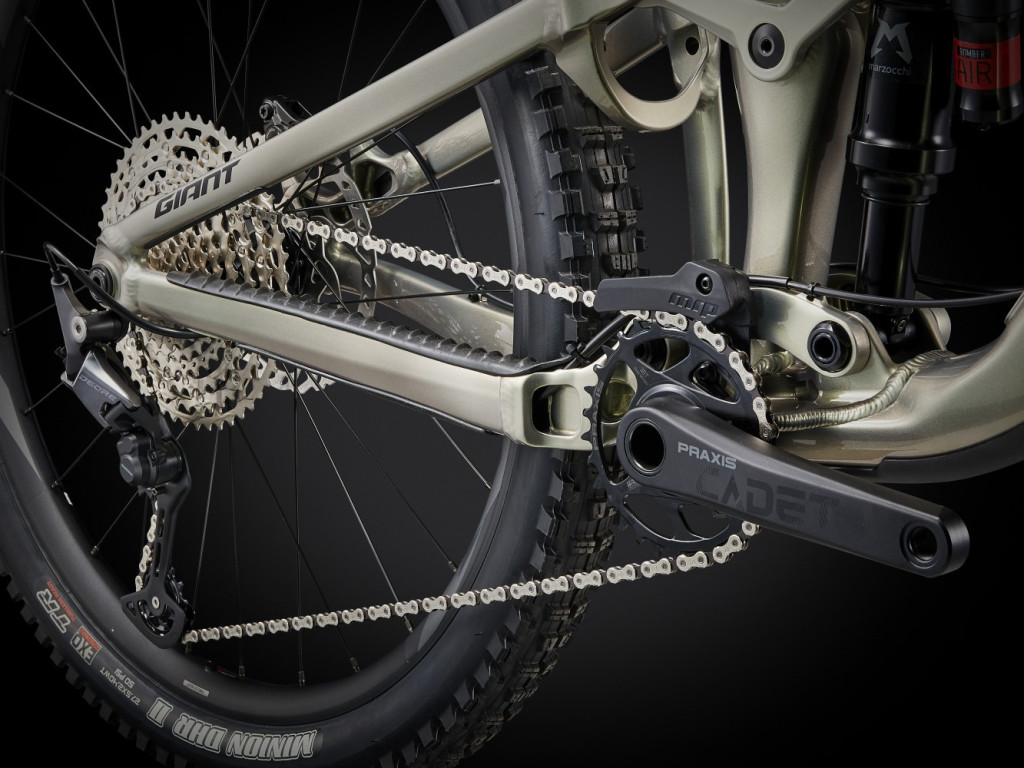

Praxis Cadet HD M24, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
Középagy
Praxis, press fit
Felnik
Giant TRA 2 wheelset, 6061 alloy, hookless, 30mm inner width, 40mm outer width, 21mm height, Wide Guard Technology
Agyak
[F] Giant MTB alloy, six-bolt [R] Giant MTB alloy, 72t POE (Points of Engagement), six-bolt, MicroSpline driver body
Küllők
Sapim, 28, J-bend
Külsők
[F] Maxxis Minion DHF, 29x2.5 WT, 60 tpi, EXO, TR [R] Maxxis Dissector 27.5x2.4 WT, 60 tpi, EXO TR, tubeless
